Cable & Pipe Installation Attachments

TRENCHER ATTACHMENT

Used to cut trenches in a variety of ground conditions with a large selection of digging chains and booms available.

Watch Video

Basic Specifications

  • Max. Trench Depth: 915mm
  • Max. Trench Width: 150mm
  • Weight: 220kgs approx
WIDE OFFSET TRENCHER ATTACHMENT

Used to cut trenches in a variety of ground conditions with a large selection of digging chains and booms available.

Basic Specifications

  • Max. Trench Depth: 1.2 metres
  • Max. Trench Width: 300mm
  • Weight: 270kgs approx
VIBRATORY PLOUGH ATTACHMENT

Used for pulling-in or feeding cables and pipe underground with minimal turf disruption.

Watch Video

Basic Specifications

  • Cover Depth: 450mm
  • Max. Bullet Diameter: 75mm
  • Weight: 170kgs approx
SAW ATTACHMENT

Used for cutting soil, asphalt, concrete or rock. Saw can cut centreline or offset 254mm toward the right side of the unit.

Watch Video

Basic Specifications

  • Max. Trench Depth: 330mm
  • Max. Trench Width: 102mm
  • Weight: 272kgs

BACKFILLING ATTACHMENTS

6-WAY BACKFILL BLADE ATTACHMENT (46

Used to Backfill Trenches, or to move earth/snow and basic grading and scraping. Tilts 15 Degrees each direction and swings 30 degrees left and right.

Watch Video

Basic Specifications

  • Height: 432mm
  • Length: 560, 578mm
  • Width: 1.19, 171 metres
  • Weight: 117, 132kg
STANDARD BACKFILL BLADE ATTACHMENT (48

Used to Backfill Trenches, or to move earth/snow and basic grading and scraping.

Basic Specifications

  • Height: 394mm
  • Length: 1.44, 1.44, 125 metres
  • Width: 1.78 metres
  • Weight: 136, 136, 113 kgs

EROSION & SEDIMENT CONTROL/NEWT FENCE ATTACHMENT

SILT FENCE INSTALLER ATTACHMENT

Used in conjunction with a Ditch Witch Vibratory Plough, for installing fencing to contain Soil/Sediment Erosion and for Newt Fencing.

Watch Video

Basic Specifications

  • Blade Depth: 231mm (Below Grade)
  • Installation Disc Diameter: 508mm
  • Weight: 90 kgs

LOADING/LIFTING ATTACHMENTS

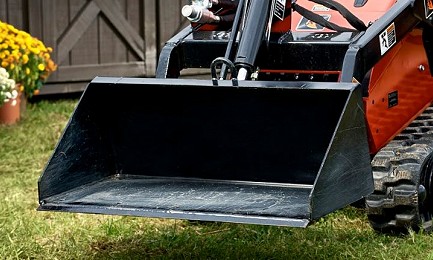

BUCKET (36

Used for scooping, lifting and transporting materials.

Watch Video

Basic Specifications

  • Height: 432, 432, 427, 523mm
  • Length: 569, 569, 706, 991mm
  • Width: 914mm, 1.1m, 1.32m, 183m
  • Weight: 68, 78, 110, 282 kgs

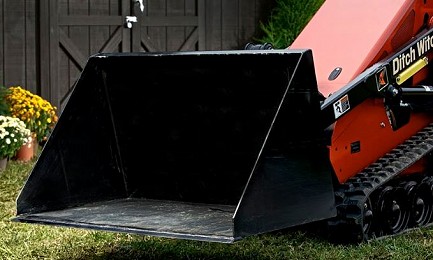

LIGHT MATERIALS BUCKET

Used for scooping, lifting and transporting light materials.

Watch Video

Basic Specifications

  • Height: 699mm
  • Length: 838mm
  • Width: 1.13 metres
  • Weight: 129 kgs
GRAPPLE BUCKET

Used for loading and unloading, hard to handle materials.

Watch Video

Basic Specifications

  • Height: 711mm
  • Length: 711mm
  • Width: 1.85 metres
  • Weight: 361 kgs
ROCK BUCKET

Used to sort rock and debris, while leaving soil in place. The 75mm spacing of the times allows dirt, sand and gravel to fall away, while the larger rocks stay in the bucket.

Watch Video

Basic Specifications

  • Height: 553mm
  • Length: 1.27 metres
  • Width: 1.89 metres
  • Weight: 337 kgs
GRAPPLE FORK (42

Used for loading and unloading, hard to handle materials.

Basic Specifications

  • Height: 650, 650, 671mm
  • Length: 795, 795, 912 mm
  • Width: 1.07, 1.37, 1.83 metres
  • Weight: 123, 134, 361 kgs
PALLET FORK

Used for lifting, lowering and transporting pallets.

Watch Video

Basic Specifications

  • Height: 762mm
  • Fork Length: 914mm
  • Fork Width: 165 to 864mm
  • Weight: 103 kgs
BACKHOE

Digs up to 2 metres depth with 5 optional bucket sizes up to 457mm.

Watch Video

Basic Specifications

  • Height: 1.7 metres
  • Length: 1.93 metres
  • Width: 1.14 metres
  • Weight: 323 kgs
CARRY ALL LEVELER

Used for levelling, loose terrain and carrying cargo.

Basic Specifications

  • Height: 406mm
  • Length: 914mm
  • Width: 1.24 metres
  • Weight: 64 kgs

LANDSCAPING/FENCING ATTACHMENTS

HARLEY RAKE

Used for landscaping and preparing seedbeds. Available in rigid, manual or hydraulic frame swing configurations.

Watch Video

Basic Specifications

  • Height: 610mm
  • Length: 1.3 metres
  • Width: 1.47 metres
  • Weight: 231 kgs
BUCKET (36

Used for scooping, lifting and transporting materials.

Watch Video

Basic Specifications

  • Height: 432, 432, 427, 523mm
  • Length: 569, 569, 706, 991mm
  • Width: 914mm, 1.1m, 1.32m, 183m
  • Weight: 68, 78, 110, 282 kgs
ROTADARION SOIL CULTIVATOR

Used to bury rocks, clods, turf and debris, preparing seedbedsand landscapes for seed and sod.

Watch Video

Basic Specifications

  • Height: 559mm
  • Length: 1.22 metres
  • Width: 1.17 metres
  • Weight: 195 kgs
SOD LAYER

Used to carry and un-roll, rolls of sod up to 1.11m in size, optional weighted drum available for smoothing.

Basic Specifications

  • Height: 498mm
  • Length: 622mm
  • Width: 1.52 metres
  • Weight: 88.5 kgs
TILLER ATTACHMENT

Used for tilling soil.

Watch Video

Basic Specifications

  • Height: 457mm
  • Length: 711mm
  • Width: 1.3 metres
  • Weight: 145 kgs
POST DRIVER ATTACHMENT

Used to install fence posts and signs in various soils.

Basic Specifications

  • Height: 1.63 metres
  • Length: 1.21 metres
  • Width: 610mm
  • Weight: 390 kgs
FLAIL MOWER ATTACHMENT

The Flail Mower is a Heavy-Duty attachment, that will cut wood stems, mulch and clear all kinds of scrub/brush and will mow thick and long grass. Its ideal for land clearance, for mowing motorway/road verges, rough ground, ditches and hedges.

Basic Specifications

  • Cutting Width: 1140mm
  • Number of Blades: 76
  • Weight: 76kgs
GRADING RAKE ATTACHMENT

Used for clearing lots, preparing and finishing seedbeds. Features replaceable scarifying teeth.

Basic Specifications

  • Height: 483mm
  • Length: 914mm
  • Width: 1.07 metres
  • Weight: 113 kgs
MULTI-TASK TOOL

Used for rip soil, grass and other ground cover, lifting and carrying material and for pulling ball-hitch trailers.

Watch Video

Basic Specifications

  • Height: 292mm
  • Length: 1.02 metres
  • Width: 610mm
  • Weight: 55 kgs
PLATE COMPACTOR ATTACHMENT

Used to compact soil, sand or gravel with up to 2,495kgs vertical compaction force. Special front lip enables back dragging and levelling.

Basic Specifications

  • Height: 508mm
  • Length: 457mm
  • Width: 1.04 metres
  • Weight: 235 kgs
ROTARY BROOM ATTACHMENT

Used for sweeping debris and snow from pavements, car parks and other concrete surfaces.

Watch Video

Basic Specifications

  • Height: 711mm
  • Length: 1.1 metres
  • Width: 1.3 metres
  • Weight: 190 kgs

TREE SURGERY ATTACHMENTS

LOG GRAB ATTACHMENT

Ideal for lifting & loading logs and brush, designed for the most arduous forestry and tree surgery/landscaping applications. It has a heavy-duty double acting cylinder & large compact centre swivel disc complete with access/protection of hydraulic pipes. The Log Grab also features a rear counter balance for end lifting & a replaceable log pile spike. Optional accessories include Towing Ball Hitch & Capstan.

Watch video.

Basic Specifications:

  • Maximum Log Diameter: 915mm
  • Grapple Opening Width: 1,143mm
  • Grapple Closed Width: 72mm
  • Weight:180 kgs.
  • Manual Rotation: 3 Locking Positions or 320 Degrees Free Rotation


STUMP GRINDER ATTACHMENT

Used to grind stumps, hydraulic sweep control features a tough double-acting cylinder that allows the operator to tackle the largest stumps, without having to re-position the loader.

Watch Video

Basic Specifications

  • Height: 432mm
  • Length: 711mm
  • Width: 610mm
  • Weight: 83.9 kgs
WOOD CHIPPER ATTACHMENT

The Wood Chipper attachment can chip tree stems, twigs and branches and utilised as surface material for tracks, composted or to cover garden beds or only to decompose to ground. In spite of its small size and weight it is an efficient tool for many applications.

CONE LOG SPLITTER ATTACHMENT

Cone log splitter attachments are designed to split oversized logs quickly and easily. Our unique rotating threaded cone provides extreme wood splitting power for all types of timber hard, soft,straight, twisted, and even stumps and roots. This allows operators to save time, save effort and in the end save money!

Watch video.

TREE SPADE ATTACHMENT

Heavy-Duty tree shovel for digging and transplanting small trees and shrubs.

Basic Specifications

  • Height: 1.64 metres
  • Length: 1.91 metres
  • Weight: 680kgs
TREE SHEAR ATTACHMENT

Compact and powerful design makes short work of clearing unwanted trees.

Basic Specifications

  • Height: 1.07 metres
  • Length: 676mm
  • Width: 932mm
  • Weight: 172 kgs
TREE FORK ATTACHMENT

Used to lift, carry and lower rocks and balled container grown trees and shrubs.

Watch Video

Basic Specifications

  • Height: 318mm
  • Length: 1.19 metres
  • Width: 635mm
  • Weight: 66 kgs

DEMOLITION ATTACHMENTS

SNOW ATTACHMENTS

SNOW BLOWER ATTACHMENT

Snow Blower attachment  is the perfect way to remove snow from walks, driveways or parking lots.

Watch Video

PLANETARY AUGER

This auger attachment works great on the entire line of Ditch Witch® Mini Skid Steers—the SK 350, SK 750, SK752, SK755, SK850 and SK850 Footings machine.

Watch Video

CORING ATTACHMENTS

MTC100

The Utilicor MTC100 attachment offers contractors a quicker, more cost-effective solution to utility maintenance and potholing一keyhole coring. Used with a Ditch Witch SK800, SK1050 or SK1550, this powerful attachment makes accurate cuts down to 0.5 metres deep and makes up to an 455mm diameter hole. It’s less disruptive than traditional excavation and potholing methods, making it cheaper to use and less demanding on the user.
