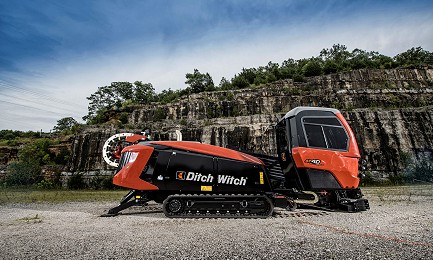

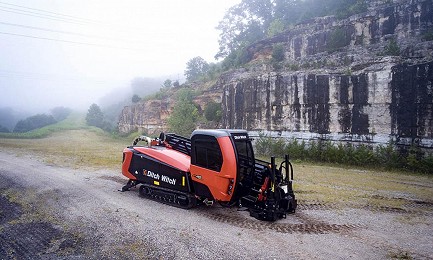

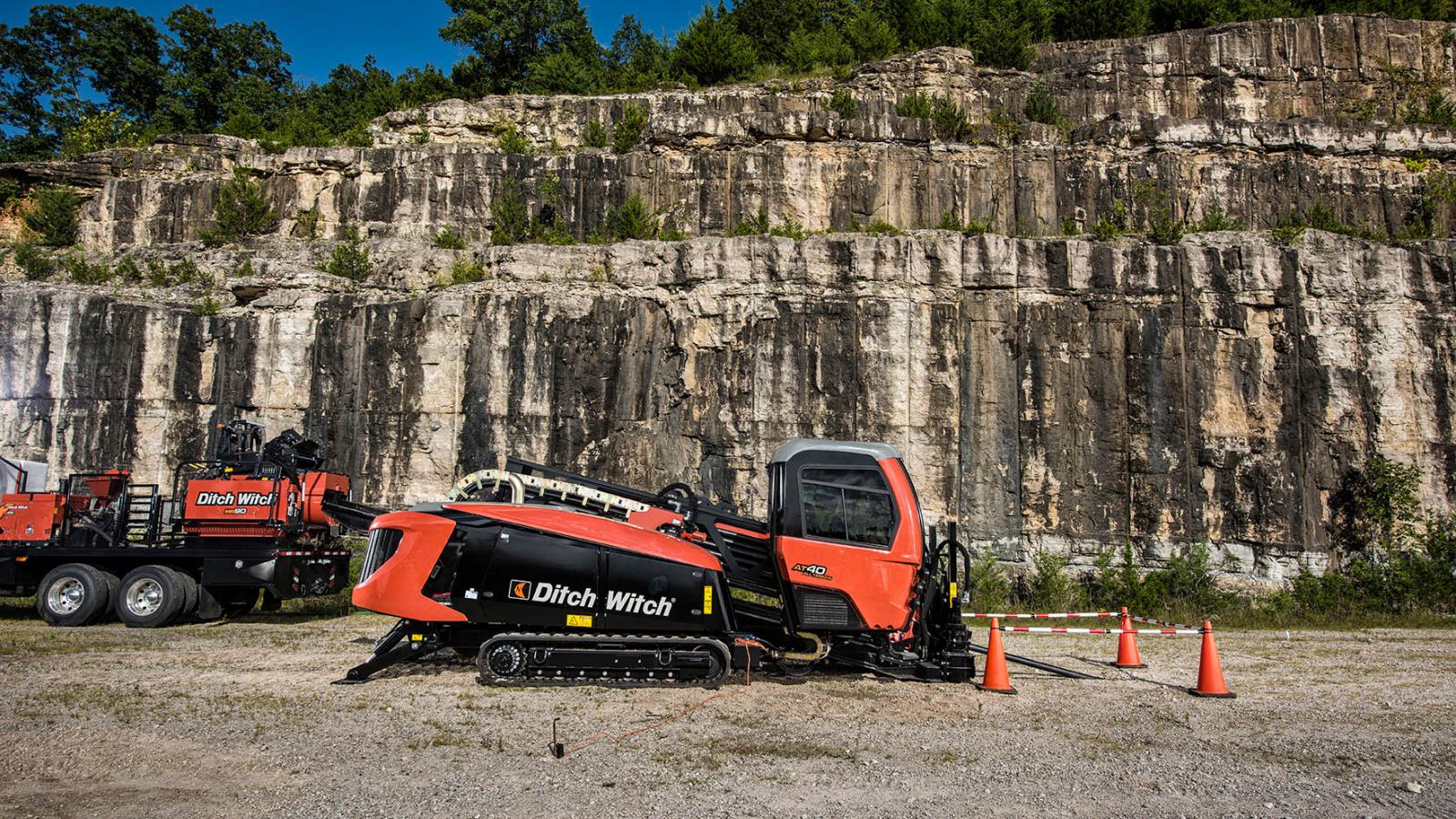

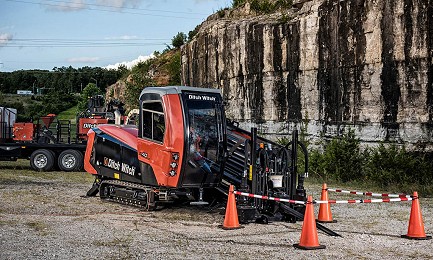

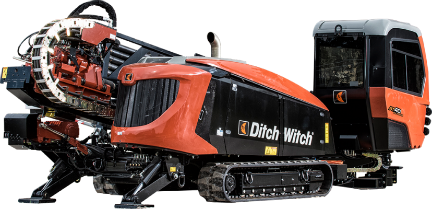

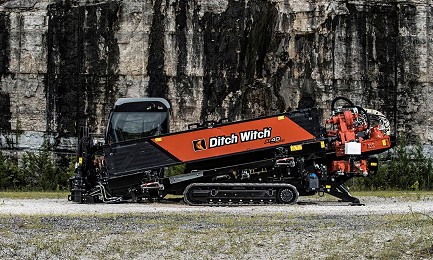

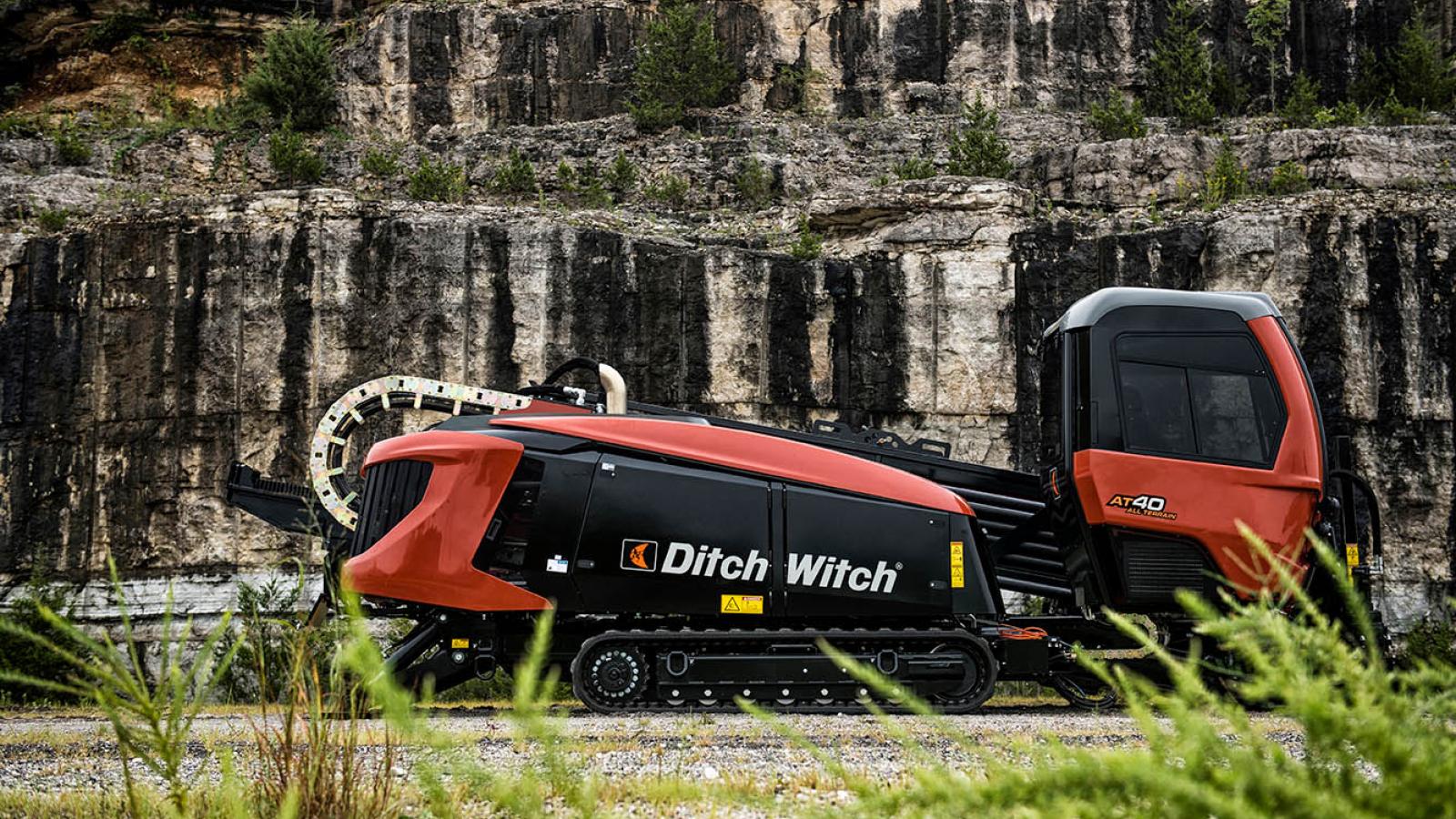

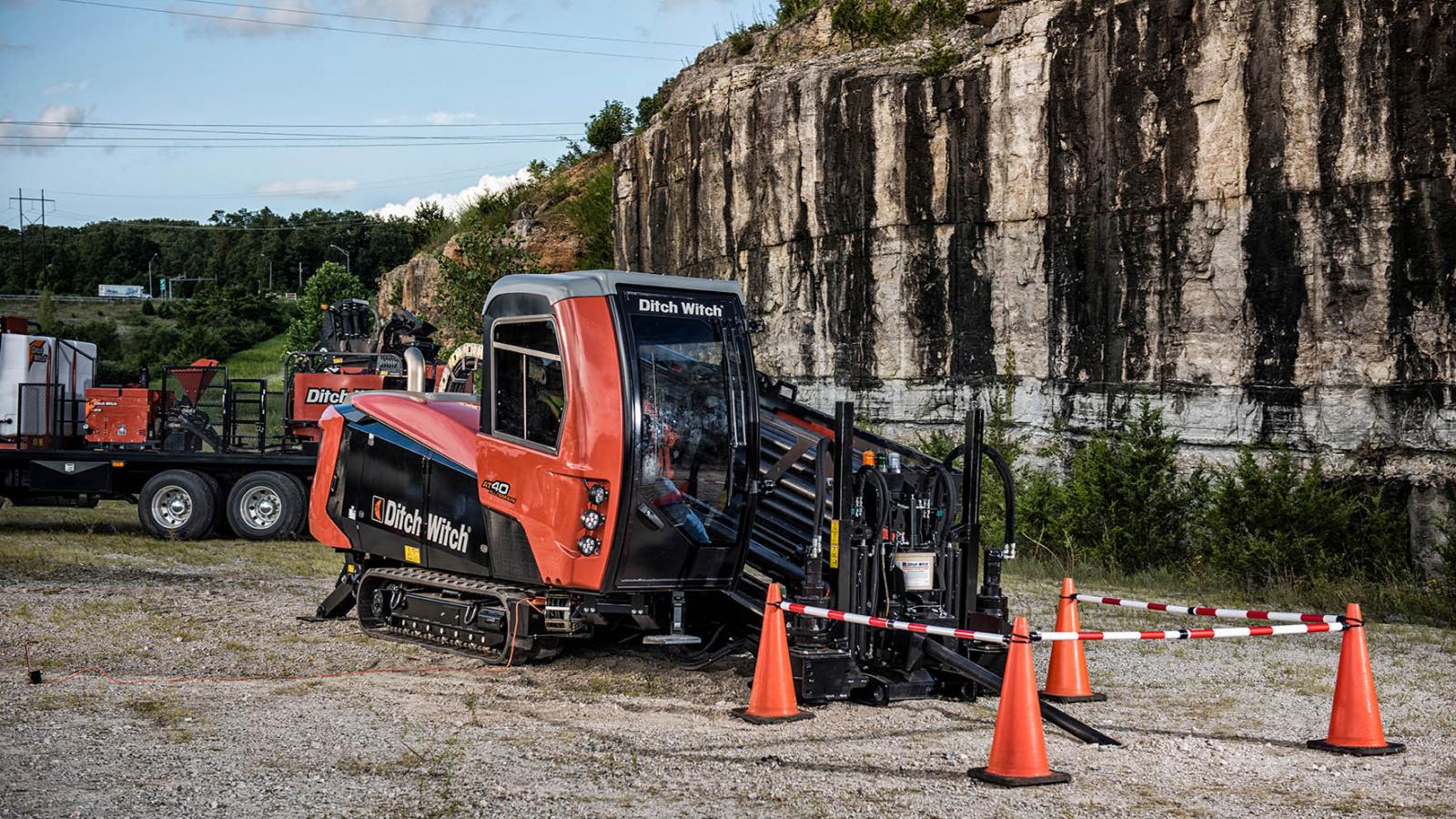

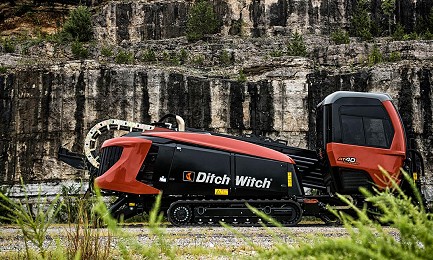

The AT40 All Terrain is designed with an advanced, two-pipe drilling system for industry-leading power to the bit. The enhanced system boosts power and productivity when drilling and steering in hard rock conditions.
The inner pipe works as a mechanical motor, driving the bit during the bore, and the outer pipe thrusts the bit forward while steering the drill shaft. During backreaming, the outer pipe transmits full machine torque downhole.
All Terrain technology enables enhanced rock drilling at a low fluid level, decreasing overall jobsite waste, minimising cleanup and reducing environmental impact.
The optimised system utilises true 4.6 metre length drill pipe, allowing a total of 110 metres of drill pipe to fit onboard for reduced jobsite cycle times.
Patent-pending All Terrain connection provides a more reliable connection for optimised performance and steering.
The RockMaster®All Terrain housing has a modular design that allows it to adapt to two different sizes of bits, allowing a 2.875 and 3.5 regular API connection.
The housing features an industry-exclusive, double-layer seal design with high-capacity bearings to increase downhole life and reliability, which minimises maintenance and cuts any associated rebuild costs in half.
A patent-pending, steering-offset design eliminates the need for a universal CV joint, reducing fatigue in shaft and allowing a two-degree bend for more effective and responsive steering in hard rock conditions.

Equipped with a 160-gross-hp, Tier 4 Cummins® diesel engine, the AT40 All Terrain provides 14 percent more horsepower than competitive models in its class.
With 17,857 kgs of thrust and pullback, the AT40 All Terrain provides 30 percent more thrust in a more compact unit than competitive models in its class.
The machine offers an innovative two-speed, rotational drive system, producing 5,500 ft·lb of torque for greater efficiency and uptime.
The newly updated hydraulic platform utilises the Ditch Witch-proven technology to provide the most efficient power downhole.

Equipped with a 70-gpm, 1,100-psi mud pump, the AT40 All Terrain has increased fluid course from the mud pump to the swivel, for more downhole flow capabilities.
The machine includes a patent pending reversible pipe box for added jobsite versatility.
Patent-pending open-sided vise wrenches on the unit are rotated toward the operator enhancing visibility.
The drill features a unique add-a-pipe design, which allows operators to manually insert additional sticks of drill pipe when pipe runs out, improving overall productivity.

The machine provides industry-leading visibility with the best view to all critical vision points, including ground entrance, wrenches, shuttle-retract location, and rear connection.
The AT40 All Terrain is equipped with the choice of a fully enclosed cab, with all tinted, glass side paneling, or an open operator’s station.
The ergonomic station was designed specifically for an HDD operator, featuring a heated seat with adjustable suspension and increased legroom.
The operator’s platform is equipped with telescoping capability providing the optimal drilling view for improved jobsite operations.
Equipped with two seven-inch LED screens for better visibility into all machine functions, diagnostics, and bore tracking information.
A real-time carriage-position indicator provides operators insight to the exact carriage position for increased productivity and intuitive operation.
The machine is equipped with radial operator control (ROC)—the multifunctional controller is highlighted on the machine display when activated for improved control efficiency.

The AT40 All Terrain is equipped with a heavy-duty modular stake down system, that can now be feathered for more precise control.
The advanced remote control gives operators the ability to set up the rig outside of the cab allowing more precise positioning of the unit on the job.
The controller includes multi-mode ground drive; dual, independent stabilisers, stake down, cab traverse, and dual pivot.
