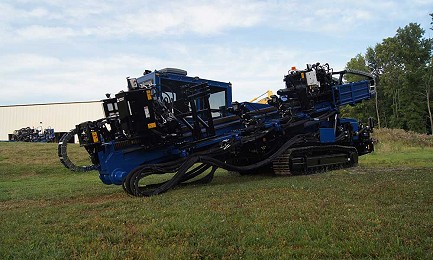

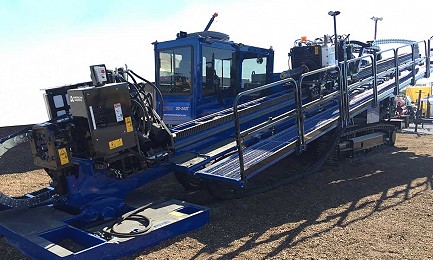

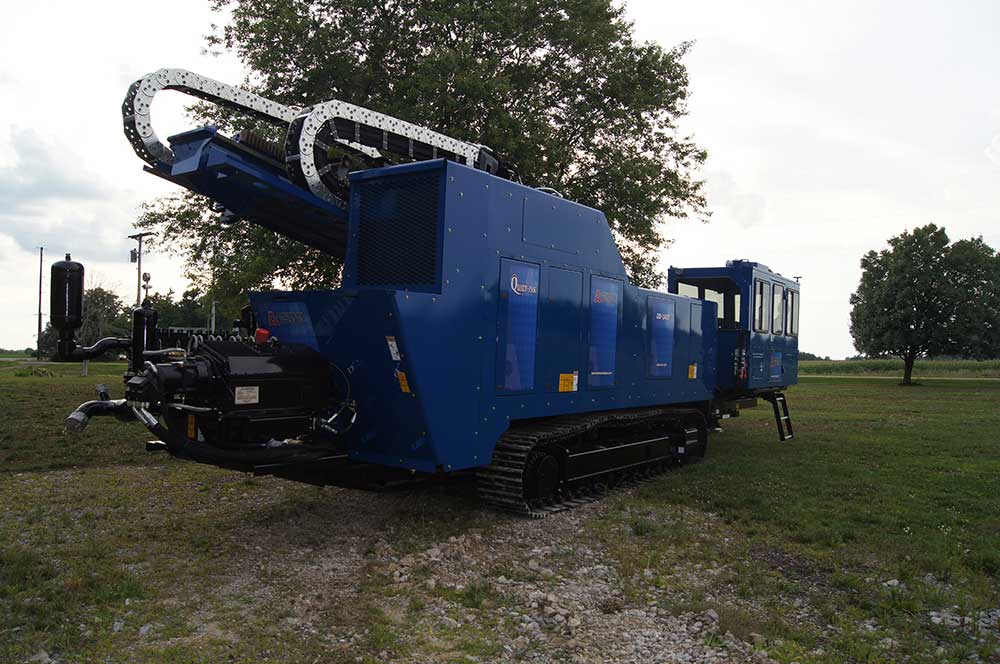

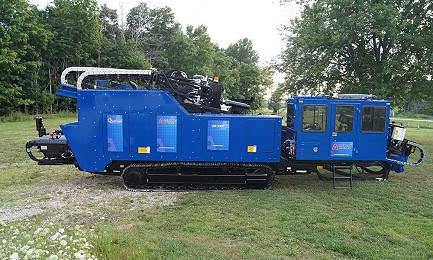

AMERICAN AUGER DD-240T DIRECTIONAL DRILL

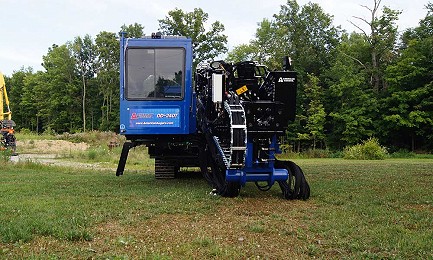

The American Augers DD-240T is the most customisable rig in the industry, it has a truly customer-driven design in a rugged package for touch environments. Including the patented Dual man onboard offboard cab for fitting a wide variety of job sites. Full length traveling wrenches assist those stubborn tool joints, allowing to pull tooling up on the drill frame. A new MTU Engine, design ed for Tier 4 final applications, means it does not require a regen cycle and loves it when you work it hard.
- Engine: MTU 6R1300 Tier 4 Final (523 HP)
- Pullback: 108 tonnes
- Rotational Torque: 43,900 ft-lbs (Max)
- Engine: MTU 6R1300 Tier 4 Final
- Rating: 523 HP (390 kW)
- Fuel Capacity: 178 U.S. gallons (674 L)
- Hydraulic Capacity: 120 U.S. gallons (454L)
- Hydraulic Filter: High-Pressure Filtration Return to 6 Micron ABS
- Battery: (2) Deka 908DME, 12 V, 1450 CCA
- Maximum Thrust / Pullback: 240,000 lbs (108 Tonnes)
- Carriage System: Rack & Pinion, (4) Pinion Drive with Adjustable Force Limiter
- Maximum Carriage Speed: 150 ft. (46 m)/minute
- Carriage Motors: (4) Hydraulic 160cc, Radial Piston/Dual Displacement
- Carriage Brakes: (2) Spring Applied/Hydraulic Release
- Carriage Gearbox: (4) Planetary Drives
- Rotary System: (2) Pinion & Gear Drive with Infinitely Variable Torque
- Maximum Rotary Torque: 43,900 ft-lbs. (59,520 Nm) @ 37 RPM
- Maximum Rotary Speed: 150 RPM
- Rotary Motors: (2) Hydraulic, 486cc, Axial Piston, Variable Displacement
- Rotary Brakes: (1) Spring Applied/Hydraulic Release
- Fluid Course: 3in. (76mm)
- Mud Swivel: Rear Mounted, 4 N.P.T.L.H x 3
- Slip Spindle: 5.5 in. (13.97mm) API-IF Pin
- Other Features: Digital Tachometer, Adjustable Torque Limiter, Wiggle Steer
- Wrench Style: Triple Jaw with 10 in. (245mm) Separation
- Maximum Beakout Torque: 80,000 ft-lbs. (108,465 Nm)
- Clamp/Grip Range: 4-1/2 in. to 8-1/2 in. (114 - 216mm) OD
- Drill Angle: 10° - 18°, wireless tramming and setup
- Drill Pipe: 20 ft. or Range II 4-1/2 in. and 5-1/2 in. API pipe
- Travel System: Self Propelled on Undercarriage Steel Track Crawler Assembly.
- Maximum Travel Speed: 1.4 mph (2.25kph)
- Es!Lok - Exit Side Lockout System with 5,280 ft. (1,609 m) Range
- ZAPALERT - Electrical Detection Device

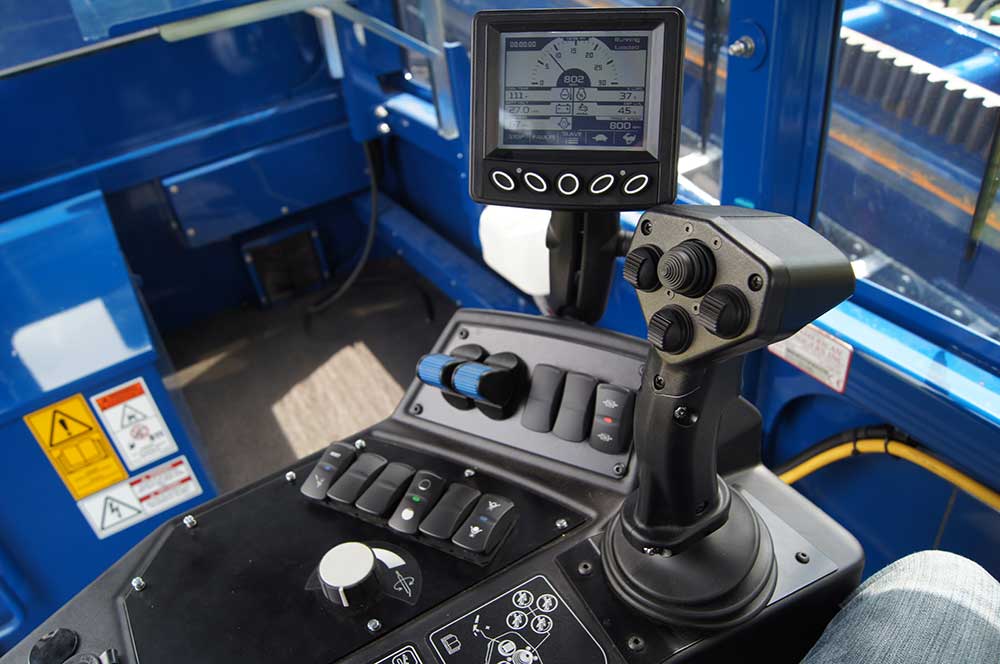

- Engine Shutdown Switch at the Operators Console, Shutdown at Enginer Controller, (8) hinged handrails for full-length thrust frame walkway.
- Length: 52.5 ft. (16m)
- Width (with pipe loader option): 8.167 ft. (2.5 m)
- Width (with full walkway option): 100.25in. (2.54 m)
- Height: 11.5ft. (3.5 m)
- Weights (can vary)
- Range 2, walkway, 2 man cabin: 80,520 transport weight (no foot)
- Range 2, Pipe loader, 2 man cabin: 81,510 transport weight (no foot)
