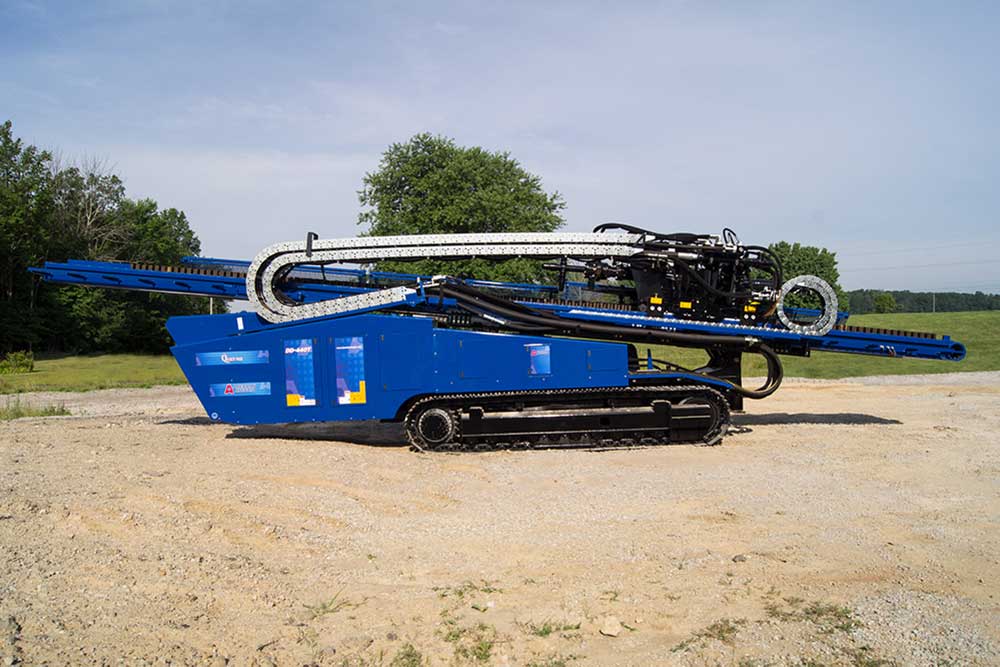

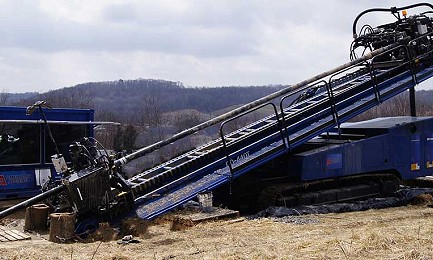

The American Augers DD-440T is the industry standard 200 tonne drill with a proven track record of reliable performance. it is the model that all others are compared to! Wireless ground drive control allows the opertor to set the unit up, without being constrainted to one area. The full length traveling wrenches can be removed for shipping and servicing, while standard Telematics provide service information & office communication with daily work progress.
- Engine: Cummins QSX15 Tier 3 or Tier 4 Final
- Pullback: 440,000 lbs. (200 tonnes)
- Rotational Torque: 60,000 ft-lbs. (80,000 Nm)
- Engine: Cummins QSX15 Tier 4 final or Tier 3 Diesel
- Rating: 600 HP (447 kW)
- Fuel Capacity: 160 U.S. Gallons (605 L)
- Hydraulic Capacity: 200 U.S. Gallons (757 L)
- Battery: (2) Deka 908DMF 12 V, 1450 CCA
- Maximum Thrust/Pullback: 440,000 lbs. (200 Tonnes)
- Carriage System: 440,000 lbs. (200 Tonnes)
- Maximum Carriage Speed: 95 ft. (29m) / minute
- Carriage Motors: (2) Hydraulic 1017 cc, Variable Displacement
- Carriage Gearbox: (2) Planetary Drives
- Rotary System: (3) Pinion & Gear Drive with Infinitely Variable Torque
- Maximum Rotary Torque: 60,000 ft-lbs. (80,000 Nm) @ 0 - 25 RPM
- Maximum Rotary Speed: 97 RPM
- Rotary Motors: (3) 160cc Hydarulic Axial Piston / Variable Displacement
- Rotary Brakes: (2) Spring Applied / Hydraulic Release
- Fluid Course: 3.5 in. (88.9 mm)
- Mud Flow Rate: Permits up to 825 U.S. Gallons / minute
- Maximum Mud Pressure: 1,500 psi (103.4 bar)
- Mud Swivel: Rear Mounted, 5 in. (127 mm) IFLH Pin
- Wrench Travel: Wrench has full-length thrust frame travel with hose carrier
- Maximum Breakout Torque: 230,000 ft-lbs. (311,839 Nm)
- Maximum Makeup Torque: 152,000 ft-lbs. (206,085 Nm)
- Clamp / Grip Range: 3 in. - 11 3/4 in. (76 - 298 mm( OD
- Wrench Assembly Motor: (2) Hydraulic LSHT, 18.3 CIR
- Wrench Assembly Brake: (1) Spring Applied / Hydraulic Release
- Wrench Gearbox: (2) SGL
- Hydraulic Wrench Cylinder: (6) 8 in. Bore x 3 in. Stroke (203 - 76.2 mm)
- Drill Angle: 10° - 18°
- Drill Pipe: Range II - 34 ft. (10.4 m)
- Transport Dimensions: 50 ft. 9in. (15.47 m)
- Width: 8 ft. 2in. (2.51 m)
- Height: 11ft. 10in. (3.61 m)
- Total Weight: 98,060 lbs. (44,479 kg)
- Total Weight w/o Wrench: 90,260 lbs. (40,941 kg) Wrench is removable for lighter transport
- Quiet-Pak: Noise reducing acoustical foam in the engine enclosure
- ES!Lok - Exit Side Lockout System with 1 mile (1.6 km) Range
- Free standing operator's console with pressure gauges with 17" Touch Screen Display
- Safety system package with ZapAlert
- Operator's manual and other unit support materials
The Wiggle Steer System provides the operator of a directional drill the means to rotate the drill pipe and subsequently the cutting head on the drill string back and forth over a pre-determined range. This back and forth motion would cause the hole made by the cutting head to be more open in a particular direction and therefore facilitate steering of the drilling pipe in that direction underground.
