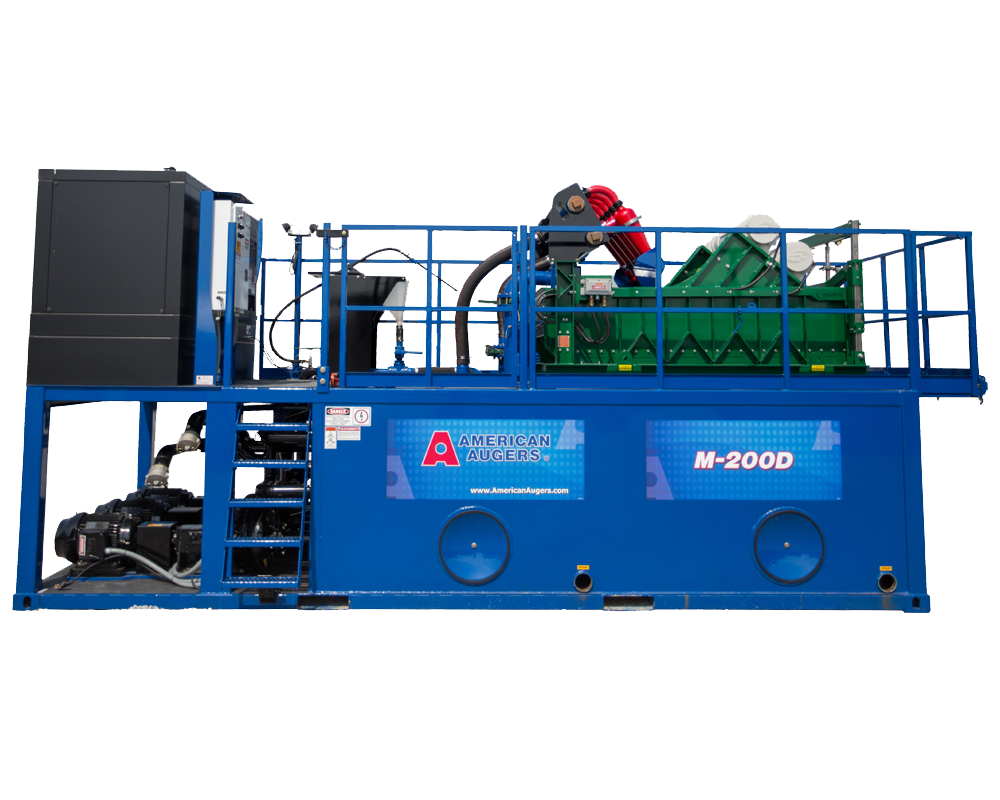

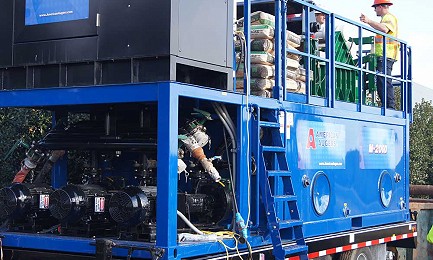

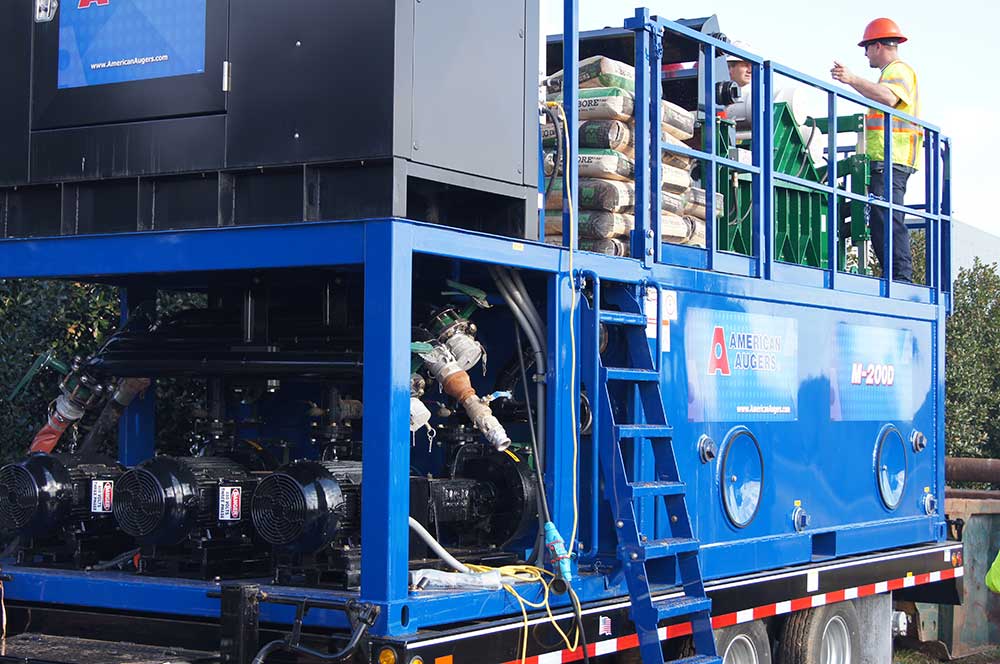

AMERICAN AUGERS M-200D MUD CLEANING SYSTEM
The American Augers M-200D Mud Cleaning System is built for the 100,000 lb drill class and down. With a 200 gpm capacity of backreamed drill fluid, it's sized for how you work. The single deck shaker makes for easy maintenance and visibility during operation, while the excellent tank agitation keeps solids in suspension so they can be removed. A solid deck prevents contamination from falling into the tank and continuous duty electric pit pump provides easy control and performance.
- Packaged to fit on low space jobsites
- 3 dedicated centrifugal pumps to ensure flow and pressure to each function
- Tank agitation prevents solids settling in each tank compartment
- Trailer or skid mounted units gives flexibility

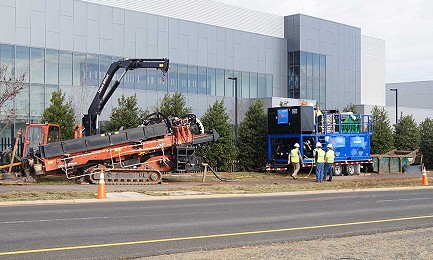

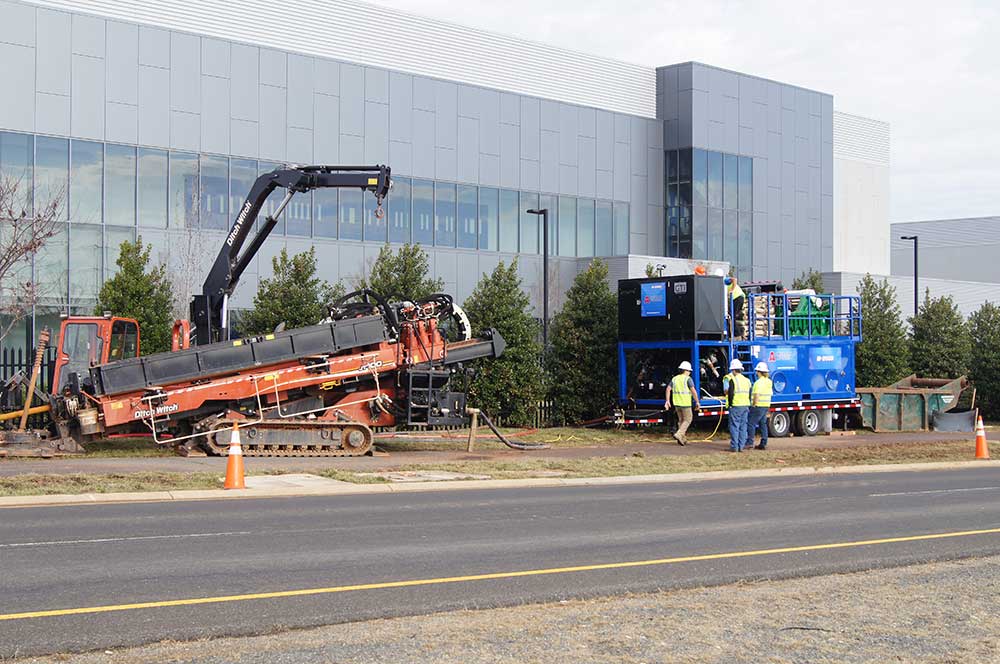

- Compatible with any drill brand
- GENERATOR & OPERATING CONTROLS
- MUD PUMPS
- CLEANING SYSTEM & TANKS
- SAFETY
- ACCESSORIES
- TRANSPORT
- DIMENSIONS
Generator
- Size- Kw (Prime Power) / Volt / Hz: 90 / 480 / 60
- Type: GEN-TECH III
- Fuel Capacity- G (L): 55 (208)
- Fuel Consumption- Gph (Lph)/Hour @ Load: 5 (19) / Hour @ 75%
- Noise Rating Distance: 1M 86 DB, 3M 82 DB
Operating Controls
- Remote Controls Available: Yes
- Offload (Supercharge) Start / Stop: Yes
- Pit Pump Start / Stop: Yes
- Centrifugal Pumps: 250 series with mechanical seal and 25 HP Motors
- Cone Supply & Agitiation: 3 in. x 4 in. with 10.5 in. Impeller
- Mud Mix & Agititation: 3 in. x 4 in. with 10.5 in. Impeller
- Offload & Agitation: 3 in. x 4 in. with 9 in. Impeller
- Bentonite Mixer: Polyethylene dry benotine mix hopper

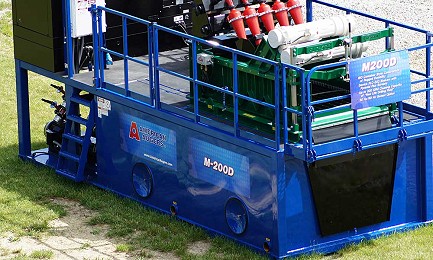

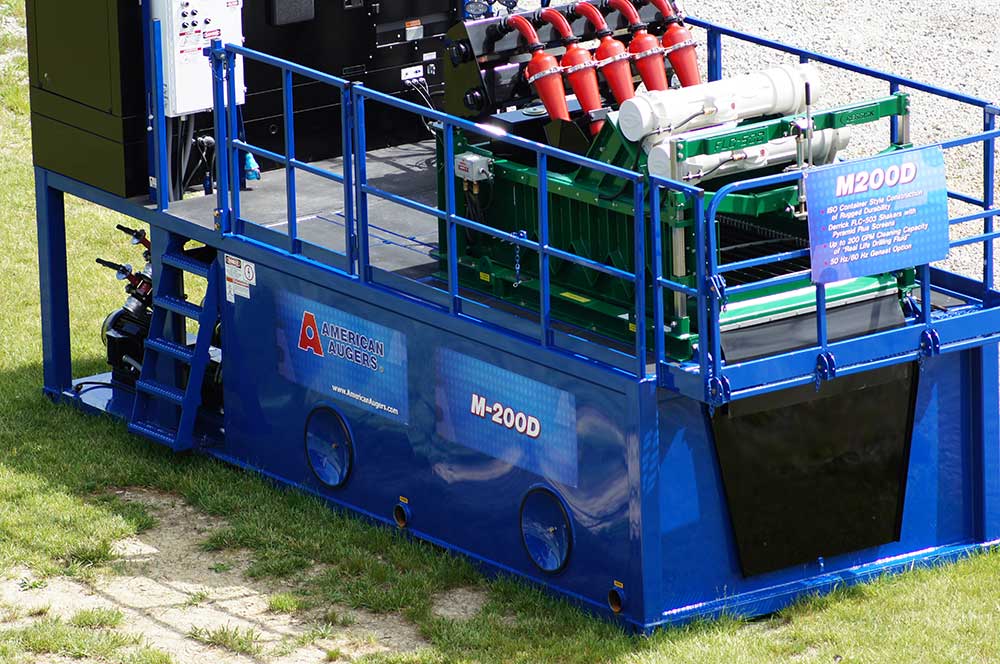

Cleaning System
- Derrick FLC-503 Linear Motion Shaker (1): 3 panel with 34.5 Ft2 non-blank screen area
- Shaker Screens Included: (1) API 60 Derrick PMD+ (pyramid plus), (1) API 50 Derrick PMD+ (pyramid plus), (1) API 140 Derrick PMD+ (pyramid plus)
- 1st Cut Shaker Cleaning Capacity: up to 200 U.S. gal. (760 L)/min
- Desilting Cones: (5) 5 in (127 mm) desilter hydrocyclones
- Desilting Capacity: up to 600 U.S. gal. (2,271 L)/min
Tanks
- Total Tank Capacity: 3,000 U.S. gal (11,356 L)
- Screen Tank: 1,700 U.S. gal (6,435 L)
- Clean Fluid / Mixing Tank: 1,300 U.S. gal (4,921 L)
- Cleanout Port Size - In. (Mm): 18 (457)
- Work Lights: Yes
- Worklight- Qty / Voltage / Type: 4 / 24V DC / LED
- Electrical Grounding Stake & Cable: Yes
- Ladder with Anti-Slip Treads: Yes
- Anti-Slip walkways with Hand Rails & Kickplates: Yes
- Emergency Shutdown Switch on Operator Control Panel: Yes
Pit Pump
- Motor- Hp (Kw)/Phase / Volt / Hz: 5 (3.7) 3PH / 460 / 60
- Submersible: Yes
- Caple Length- Ft (M): 100 (30.48)
- Discharge Size- In (Mm): 3 (76.20)
- Max Flow- Gpm (Lpm): 475 (1798)
Hoses
- Pit Pump Lay Flat- Qty: 2
- Pit Pump Lay Flat Size- In (Mm): 3.0 (76.2)
- Pit Pump Lay Flat Length- Ft (M): 50.0 (15.2)
- Male to Male Coupler: Yes
- Coupler Size- In (Mm): 3.0 (76.20)
- Available or Not: Yes
- Transport Type: Trailer
- Transport Type: Pintle Hitch
- LiftJacks: Yes
- Operation Type: Manual
- Lift Clearance at Kingpin- In (Mm): N/A
- Estimated Machine Weight: 21,000 Lbs (9,525 Kg)
- Estimated Machine Weight with Trailer: 27,600 Lbs (12,600 Kg)
- Maximum Length: 20.0 Ft (6.1 M)
- Maximum Height: 10.0 Ft (3.05 M)
- Maximum Width: 8.0 Ft (2.44 M)
- Maximum Length with Trailer: 26.2 Ft (7.98 M)
- Maximum Height with Trailer: 13.0 Ft (3.96 M)
- Maximum Width with Trailer: 8.6 Ft (2.59 M)
