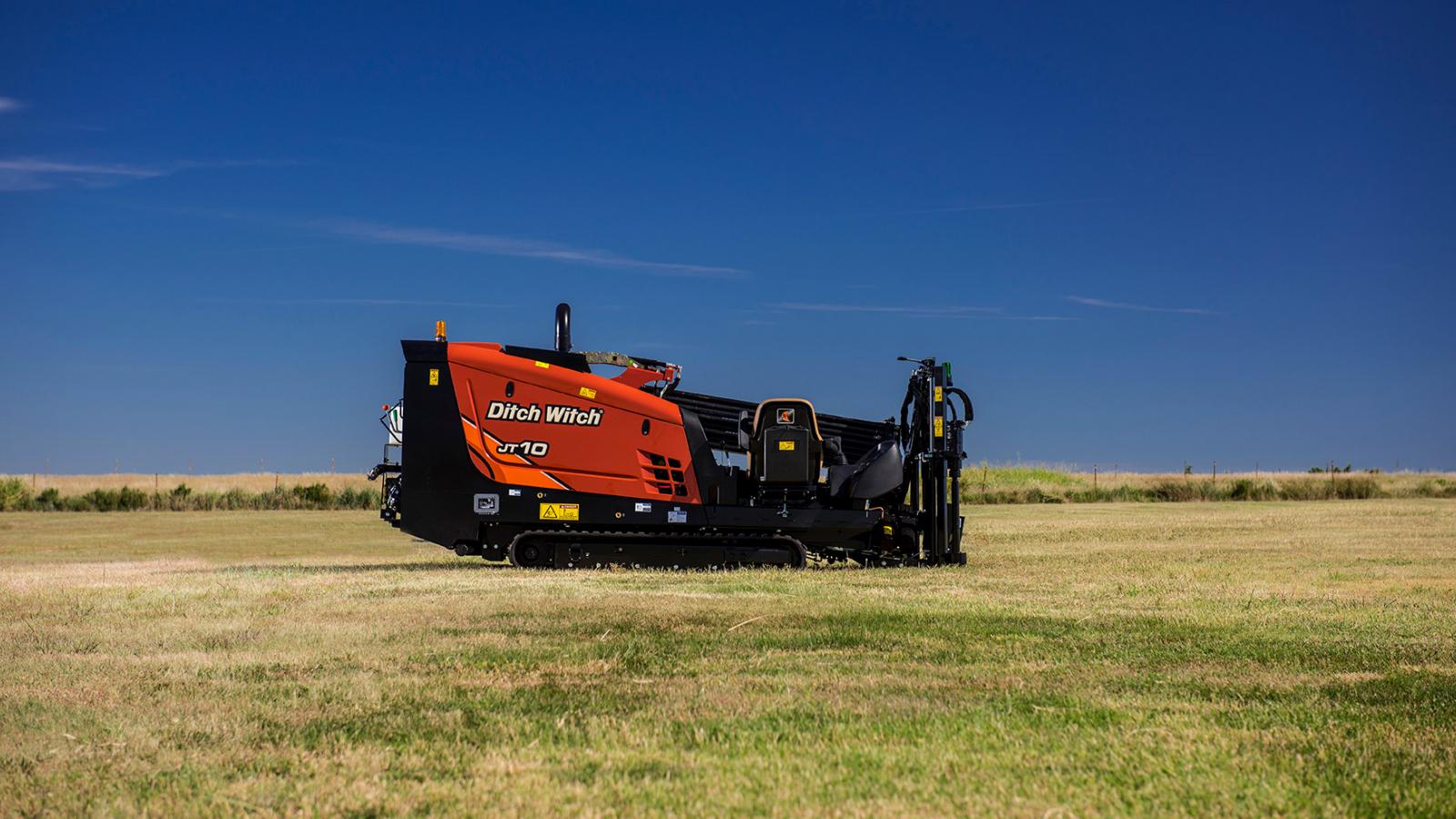

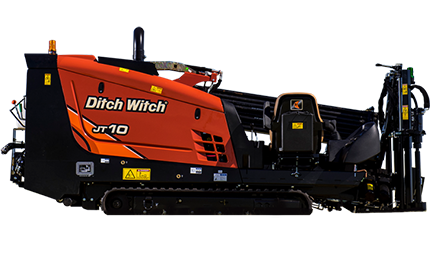

The new Ditch Witch JT10 horizontal directional drill, boasts unbeatable power in a compact, yet sturdy frame for easy transportation and improved maneuverability on tight jobsites. Powered by a Tier 4, 66-hp Deutz® diesel engine, the machine is the most powerful drill in its class. It offers 4,465kgs of pullback force, providing the advanced strength and power of bigger drills, combined with the simplicity and easy operation of a compact machine. An innovative design incorporates advanced features of larger drill machines, including a heavy-duty anchor system, open-top vise wrenches and integrated remote display. A redesigned operator's station smooths operation with a single joystick and is equipped with an ergonomic traversing seat for increased jobsite visibility and comfort on the job.
- Powered by a Tier 4, 66-hp Deutz® diesel engine, the JT10 is the most powerful drill in its class.
- For maximum strength and durability, the JT10 provides 1,100 ft·lb of rotational torque
- The engine is air-cooled and quiet for simplified maintenance and longer operation.
- The JT10 comes standard with a 16-gpm mud pump or an optional 20-gpm mud pump, for better mud flow and performance, allowing operators to jet and complete larger-diameter reams on smaller jobsites
- An onboard fluid tank holds 40 gallons of fresh water, providing additional fluid for short bores and easy cleanup. It also allows operators to effectively drill in tight spaces where an additional fluid mixer wouldn’t fit.
- The JT10 holds 98.8 m of drill pipe onboard to improve productivity and allow operators to finish virtually any utility installation job.
- The JT10 has the quickest cycle times in its drill class. The machine’s slow zone is shortened increasing cycle times and allowing operators to put more pipe in the ground faster.
- The JT10 is equipped with a heavy-duty anchor system and integrated remote tracking display—features usually only seen on larger drill units
- The JT10 is the shortest drill in its class, giving it the ability to effortlessly maneuver in tight jobsites.
- Small, compact machine is easy to transport form jobsite to jobsite with a rear ignition for faster jobsite setup.
- A field-proven rack-and-pinion thrust drive with a welded-on double rack reduces operator maintenance, increases reliability and improves sturdiness.

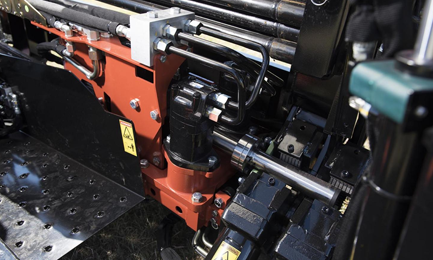

- The machine’s open-top vise wrenches are angled toward the operator for an excellent view of the tool joint and require no daily maintenance.
- With no grease points and easy access to all service points, maintenance is simplified on the JT10, helping to keep the machine out of the shop and on the job.
- The drill pipe lubrication system is a standard feature allowing operators to drill for longer periods of time and improve uptime.
- The new ergonomic seat is designed to reduce operator strain and keep the operator comfortable for long hours on a job.
- An advanced operator display provides a clear view into all engine diagnostics for boosted performance and productivity.
- The JT10 is equipped with a single joystick for quicker and smoother operation, freeing a hand for operators to focus on other tasks, including controlling mud flow and jobsite communication.
- Your Ditch Witch equipment is backed by the best dealer in the industry, who you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, Ditch Witch UK has it all for you
