TMS Plus
Download the Brochure »
Bore Planning Software

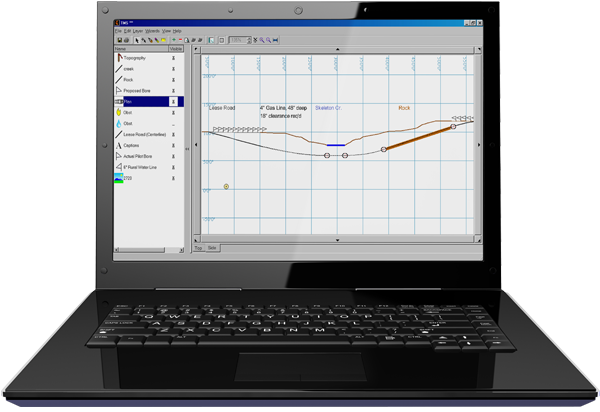

Planning a bore in advance reduces complications and saves time and money. With Subsite® TMS Plus, a Windows®-based management tool, you can plan the bore, monitor its real-time progress and print out a completed survey.
DOWNLOAD SOFTWEAR

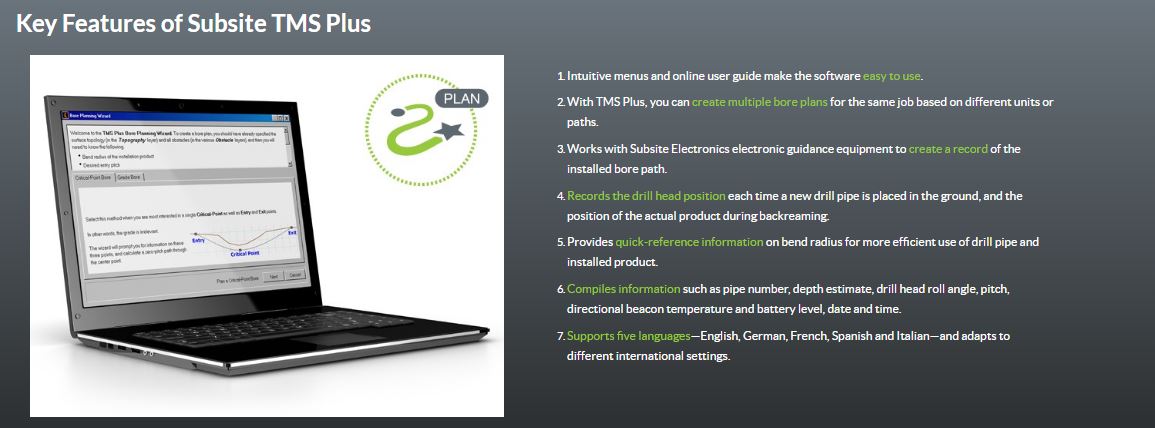

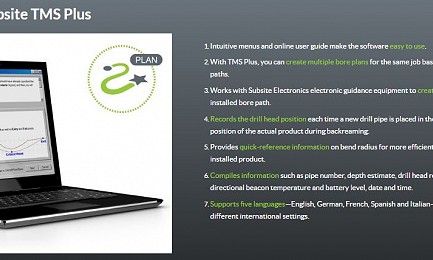

- Intuitive menus and online user guide make the software easy to use.
- Enables you to create multiple bore plans for the same job based on different units or paths.
- Records the drill head position each time a new drill pipe is placed in the ground, and the position of the actual product during backreaming.
- Works with Subsite guidance equipment to create a record of the installed bore path.
- Compiles information such as pipe number, depth estimate, drill head roll angle, pitch, directional beacon temperature and battery level, date and time.
- Provides quick-reference information on bend radius for more efficient use of drill pipe and installed product.
- Supports five languages—English, German, French, Spanish and Italian—and adapts to different international settings.
DITCH WITCH
- 750 Tracker / 750 Display
- 752 Tracker / 752 Display
- 8500 Tracker / 8500 Display
SUBSITE ELECTRONICS
- TK Series Tracker / TD Series Display
Compatible with all horizontal directional drilling (HDD) rigs.
Note: TMS Plus is not compatible with Commander 7.
- Desktop
- Laptop
