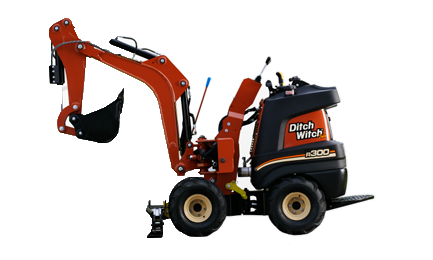

ZAHN R300 TOOL CARRIER

ZAHN R300 TOOL CARRIER

ZAHN R300 TOOL CARRIER
ZAHN R300 TOOL CARRIER
Download the Brochure »

The innovative design of the Zahn R300 Tool Carrier means you don’t have to sacrifice power for versatility. With both wheels or rubber tracks and high and low-lift models, you’ll get maximum productivity from the dozens of available quick-change compact utility attachments. And with the Zahn’s elevated platform, you'll have a bird’s-eye view of the task at hand.

Basic Specifications

  • Engine: 30hp Kohler Petrol
  • Hydraulic Flow: 46 l/min @ 3,000psi
  • Tipping Capacity: 363kgs
  • Hinge Pin Height: 1.85 metres
  • Ground Drive Speed: 3.5 mph
  • Machine Width: 91.4 cm
  • Machine Weight: 754kgs
  • Power
  • Productivity

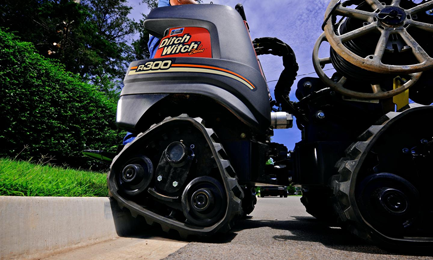

  • Undercarriage
  • Operator's Station
  • Superior Support

  • 11-gallon (41.6 L) fuel tank enables the operator to work all day without having to refuel; the tank's molded-in sight glass allows the operator to keep an eye on fuel consumption.

  • The high-lift-arm tool carrier's 1.85 metre hinge pin height provides the flexibility to perform an extensive range of tasks.
  • 4-bar linkage on bucket curl increases the high-lift-arm's rollback and dump angles so it can move materials more efficiently.
  • The high-lift-arm's optional hydraulic self-leveling kit—an exclusive feature in this class—ensures that the attachment is level, so work can be more accurate and efficient. .
  • Kickstand provides quick and easy attachment to and removal from the power unit, increasing productivity.
  • Standard mini skid steer-type attachment plate (optional with low-lift model) provides maximum versatility by enabling the tool carrier to accept more than 40 quick-change attachments.

Power unit's exclusive traction-assist feature provides extra drawbar on demand, enabling the operator to push more, pull more and traverse soft ground with minimal tyre slippage.

  • Standard cruise control, which locks in operating speeds, reduces operator fatigue and increases productivity
  • Soft-touch, colour-coded, ergonomic controls are easy to grip, easy to learn and provide smooth, easy operation.
  • Convenient cargo tray is large enough to store a water bottle, work gloves, cell phone, or assorted tools.

  • Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
